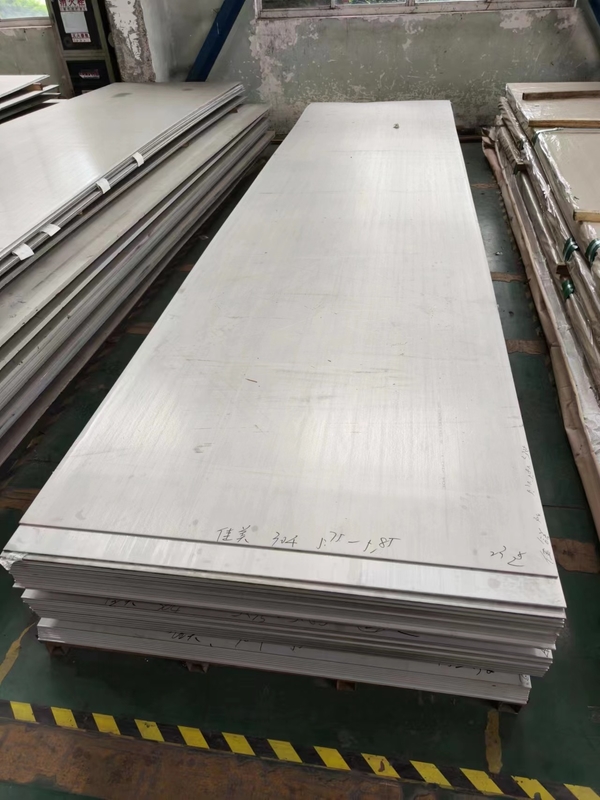

316L 2B BA No.4 Hl 8k Surface Aisi 304 Stainless Steel Sheet For Construction
Product Description of 304 stainless steel plate
Stainless Steel 304l Vs 316l
Due to the difference in chemical composition of Stainless Steel 304l and 316l, their properties also vary. Type 316L can resist low concentrated sulphuric acid, whereas 304L can effectively resist it even at a high concentration. However, Type 316L can withstand phosphoric acid better than 304L. The L in both the materials denotes low carbon content.
The stainless steel alloy material stands out with its incredible tensile strength of approximately 621 MPa or 90 KSI. Grade 304 also has a higher operating temperature of up to 870 °C.
Stainless steel is not only a top-quality and durable metal, it is also the safest option for use in your home. Stainless steel emits no toxins and does not react with ingredients.
Details of 304 stainless steel plate:
Product Parameters | |
Product Name | 201 202 304 304 316 3161 430 PWD Stainless steel Color sheet |
Category |
Stainless steel Color sheet Production method: Cold rolled Classified by thickness: Thin plate (0.4mm-3mm) |
SIZE |
THICKNESS:0.40-3.00mm WIDTH:1000mm1220mm . 1500mm LENGTH:2000mm,2440mm, or customized |
Materia | 201 202 304 3041 316 3161 430 etc. Or Customized |
Surface Finish | BA , SB , 8K mirror , No.4 Hairline , etching , water ripple PVD color coating with PVCprotective film or customized. |
Standard | GB, AISI ASTM, ASME. EN, BS, DIN, JIS |
Brand | TISCO,JISCO.BAOSTEEL LISCOPZSS |
Application | Bar , hotel , hall , club market , airport decoration |
Package | Standard export sea-worthy packing or customized |
Thickness | Allowable deviation | Width | ||
Up(mm) | Down(mm) | ≤1000(mm) | >1000~≤1300(mm) | |
0.10 | 0.03 | 0.03 | ||
0.20 | 0.05 | 0.05 | ||
0.30 | 0.03 | --- | ||
0.40 | 0.04 | 0.04 | ||
0.50 | 0.08 | 0.08 | ||
0.60 | 0.05 | 0.05 | ||
0.80 | 0.05 | 0.05 | ||
1.00 | 0.13 | 0.13 | ||
1.00 | 0.055 | 0.06 | ||
2.00 | 0.18 | 0.18 | ||
2.00 | 0.10 | 0.10 | ||
3.00 | 0.25 | 0.25 | ||
3.00 | 0.13 | 0.13 | ||
4.00 | 0.36 | 0.36 | ||
5.00 | 0.17 | 0.17 | ||
6.00 | 0.17 | 0.20 | ||
8.00 | 0.17 | 0.22 |
Surface Treatment
Surface Treatment | Definition | Application |
NO.1 | A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding process | Chemical Tanks, Pipes, Chemical Industry Equipment etc. |
2B | After cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate luster | Medical Equipment, Food Industry, Construction Material, Kitchen Utensils etc. |
BA | After cold rolling, bright heat treatment is given | Kitchen Utensils, Electric Equipment, Building Construction etc. |
NO.4 | Products polished with abrasives 150 to 180 as specified in JIS R6001 | Kitchen Utensils, Building Construction, Medical Equipment etc. |
HL | After polishing, use the appropriate abrasive size to form a continuous polishing streak | Building Construction etc. |
8K | A mirror-like reflective surface given by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior and exterior decoration etc. |
