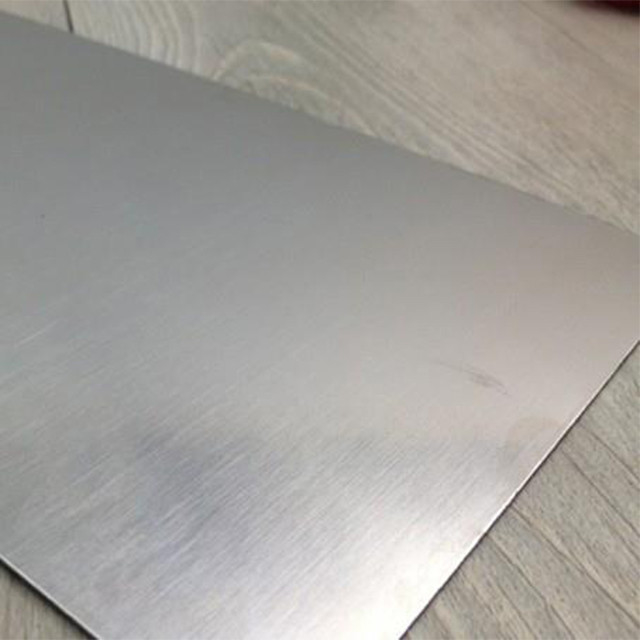

Cold Rolled Stainless Steel Diamond Plate Sheets 3mm 4mm Stainless Steel Plate 316

Cold Rolled Stainless Steel Diamond Plate Sheets 3mm 4mm Stainless Steel Plate 316

  • High Light

    stainless steel diamond plate sheets 3mm


    stainless steel metal plate 4mm


    JIS stainless steel plate 316

  • Shape
    316L Stainless Steel Sheets
  • Material
    Stainless Steel
  • Length
    1000mm-6000mm;as Required
  • Thickness
    0.03mm-300mm Or As Required
  • Width
    1000-2000mm,0.3-100mm,20mm To 1245mm,8-3000mm,10-2000MM Or Customized
  • Standard
  • Surface
  • Technique
    Cold Rolled/Hot Rolled
  • Steel Grade
    300 Series,200/300/400 Series,200,400
  • Hardness
    Soft Hard(HRB60),medium Hard(HRB60-85),full Hard(HRB85-95)
  • Processing Service
    Bending, Welding, Decoiling, Punching, Cutting
  • Finish
    Pickled ,black, Bright, Polished
  • Application
    Stainless Steel Bars Can Apply To Construction Field, Ships Building Industry, Petroleum & Chemical Industries
  • Place of Origin
  • Brand Name
  • Certification
    ASTM A240/A240M
  • Model Number
  • Minimum Order Quantity

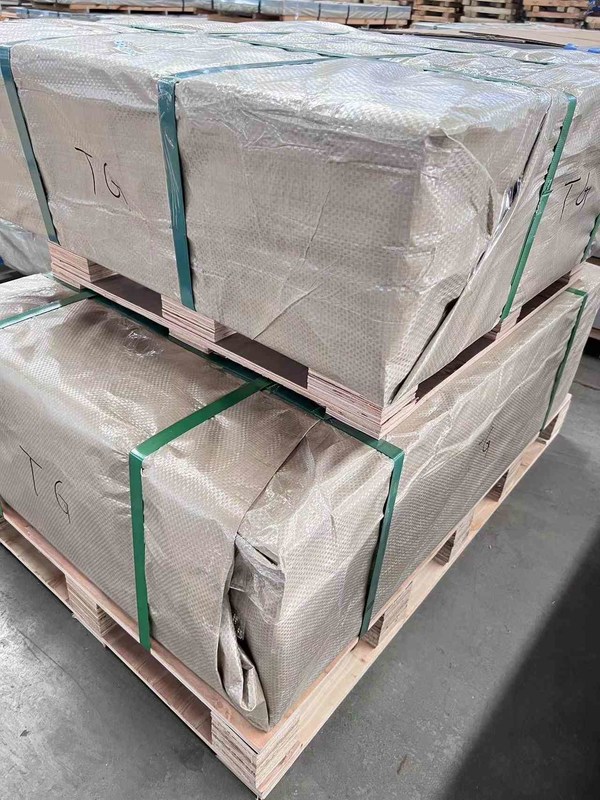

  • Packaging Details
    Export packaging, wooden pallet + iron surround
  • Delivery Time
    5-8 work days
  • Supply Ability

Cold Rolled Stainless Steel Diamond Plate Sheets 3mm 4mm Stainless Steel Plate 316

Customization HOT/COLD Rolled 3mm 4mm 10mm Thickness AISI 316L Stainless Steel plate


Production Description of 316L Stainless Steel Sheets

Thanks to the efforts of our staff, we have successfully broken the barriers in technology innovation and upgrades. We have mastered technologies, which ensures the whole manufacturing process is efficient.It covers a wide application range and has found its great use in the field(s) of Stainless Steel,Carbon Steel,Galvanized Steel,Coated Flat Steel Products up till now.

AISI 316 201 202 304 430 pvd coated Stainless Steel coil/sheet/plate to the public.


Alloys 316 (UNS S31600) and 316L (UNS S31603) are molybdenum-bearing austenitic stainless steels, which are more resistant to general corrosion and pitting/crevice corrosion than the conventional chromium-nickel austenitic stainless steels such as Alloy 304. These alloys also offer higher creep, stress-to-rupture, and tensile strength at elevated temperatures. In addition to excellent corrosion resistance and strength properties, the Alloys 316 and 316L Cr-Ni-Mo alloys also provide excellent fabricability and formability which are typical of the austenitic stainless steels.


Parameter of 316L Stainless Steel Sheets

ITEM Stainless Steel Sheet/Plates Coils
Size Thickness 0.01-3.0mm or customized; Width:10-1500mm Customized


430.410.440.904Lect. Or Customized

Surface 2B.NO.1.,NO.3,NO.4,HL,BA,8K,Matte, Satin,Gold Titanium Or customized;
Application Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum,
boiler, nuclear energy, Medical equipment, fertilizer etc
Package Standard export sea-worthy packing or customized
Lead Time 3-15 days after deposit
Payment TT/LC
Sample we could offer the sample for free charge but do not pay the cost of freight.


Mechanical Test Requirements
Tensile Strength ≥75ksi or ≥515MPa
Yield Strength ≥30ksi or ≥205MPa
Elongation in 2inch,or50mm ≥40%
Hardness ≤217HBW or ≤95HRB

Chemical Composition Requirements

Carbon ≤0.03%
Manganese ≤2.00%
Phosphorus ≤0.045%
Sulfur ≤0.030%
Silicon ≤0.75%
Chromium 16.0%-18.0%
Nickel 10.0%-14.0%
Nitrogen ≤0.10%
Molybdernum 2.00%-3.00%


Surface Treatment
AISI Stainless Steel Sheet Plates 0

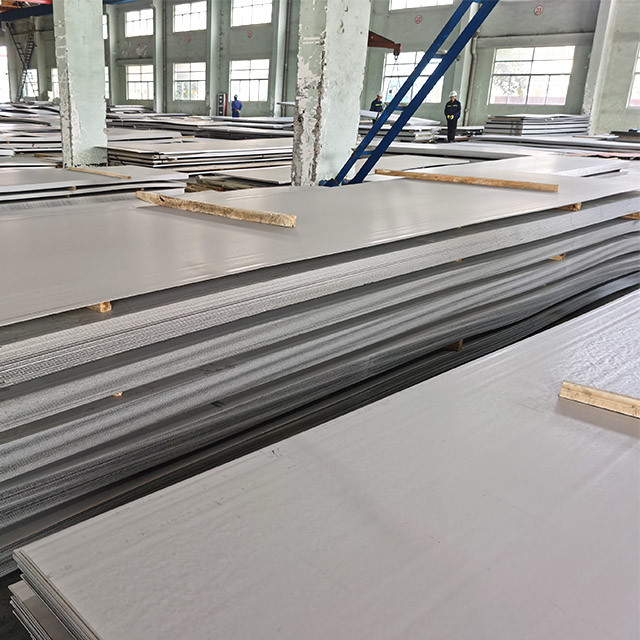

Our Factory


We have imported equipment, 20,000 tons of inventory, professional masters, and a clean environment. Customer satisfaction is the basis of our service. If you need stainless steel materials, please contact our professional sales as soon as possible. They will give you the fastest. We make the most professional and reasonable quotation at the speed of our company, and look forward to our long-term cooperation as soon as possible


Cold Rolled Stainless Steel Diamond Plate Sheets 3mm 4mm Stainless Steel Plate 316 1

Cold Rolled Stainless Steel Diamond Plate Sheets 3mm 4mm Stainless Steel Plate 316 2


A: How could I get a sample?
Samples are free.Before we received the first order, please afford the express fee. We will return the express fee back to you within your first order.

B:what can you buy from us?
Stainless Steel pipe,Stainless Steel coil,Stainless Steel sheet,Stainless Steel bar,stainless steel elbow.

C: Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

D: Whether you could make your products by our color?

Yes, The color of products can be customized if you can meet our MOQ.

E; How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
