Welding 316L Stainless Steel Plate Sheets 1500mm 2000mm

Welding 316L Stainless Steel Plate Sheets 1500mm 2000mm

  • High Light

    Welding 316L Stainless Steel plate Sheets

    ,

    2000mm 316L Stainless Steel plate

    ,

    316L Stainless plate Sheets 1500mm

  • Certificate
    ISO, SGS, BV, Etc
  • Delivery
    7-15 Days
  • Processing
    Cutting, Bending, Welding, Punching
  • Surface Finish
    No.1, 2B, BA, HL, 8K, Mirror
  • Width
    1000mm, 1219mm, 1500mm, 2000mm
  • Edge
    Mill Edge, Slit Edge
  • Package
    Standard Export Seaworthy Package
  • Tolerance
    ±0.02mm
  • Place of Origin
    China
  • Brand Name
    TISCO, LISCO, ZPSS, BAOSTEEL
  • Certification
    ASTM A240/A240M
  • Model Number
    316/316L
  • Minimum Order Quantity
    5tons
  • Packaging Details
    Export packaging, wooden pallet + iron surround
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000Ton/Month

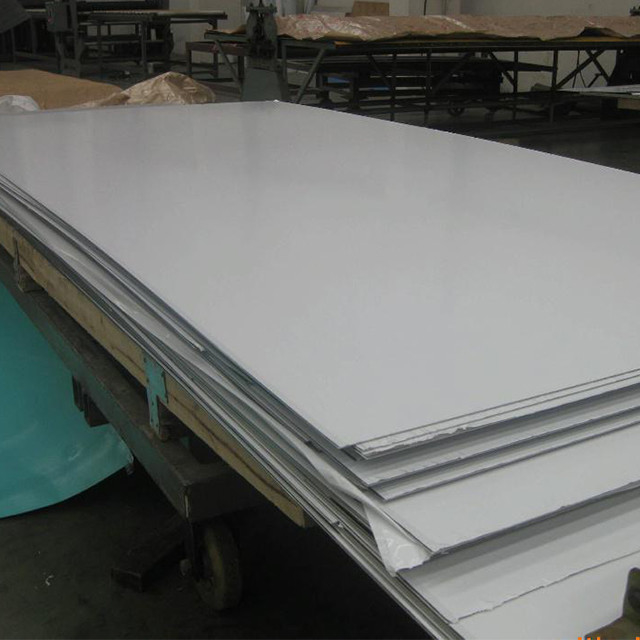

Welding 316L Stainless Steel Plate Sheets 1500mm 2000mm

Product Description:

Our Stainless Steel 316L Sheets are manufactured from the highest quality 316L Stainless Steel material with precise width, thickness, and length tolerance to ensure maximum performance. Our sheets are designed to handle heavy-duty applications with the highest corrosion resistance and durability. They are available in a range of widths including 1000mm, 1219mm, 1500mm, and 2000mm, and in a variety of thicknesses. We provide cutting, bending, welding, and punching processing services for our stainless steel sheets.



Features:


ITEM Stainless Steel Sheet/Plates Coils
Size Thickness 0.01-3.0mm or customized; Width:10-1500mm Customized
Material

201.202.301.302.304.304L.310S.316.316L.321.347,329,A.309S.2205.2507.2520.

430.410.440.904Lect. Or Customized

Standard GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface 2B.NO.1.,NO.3,NO.4,HL,BA,8K,Matte, Satin,Gold Titanium Or customized;
Application Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum,
boiler, nuclear energy, Medical equipment, fertilizer etc
Package Standard export sea-worthy packing or customized
Lead Time 3-15 days after deposit
Payment TT/LC
Sample we could offer the sample for free charge but do not pay the cost of freight.



Technical Parameters:



Mechanical Test Requirements
Tensile Strength ≥75ksi or ≥515MPa
Yield Strength ≥30ksi or ≥205MPa
Elongation in 2inch,or50mm ≥40%
Hardness ≤217HBW or ≤95HRB

Chemical Composition Requirements

Carbon ≤0.03%
Manganese ≤2.00%
Phosphorus ≤0.045%
Sulfur ≤0.030%
Silicon ≤0.75%
Chromium 16.0%-18.0%
Nickel 10.0%-14.0%
Nitrogen ≤0.10%
Molybdernum 2.00%-3.00%


Applications:

316L stainless steel sheets are widely used in various fields, such as chemical processing, oil and gas, architecture, medical equipment, and transportation. With its excellent corrosion resistance, high strength, and high temperature resistance, 316L stainless steel sheets have become a popular choice for a variety of applications.

Our 316L stainless steel sheets are manufactured with the highest quality raw materials and are strictly tested to ensure superior performance. With a minimum order quantity of 1 ton, our sheets are extremely versatile and can be customized to meet the exact specifications of any project. We also offer a wide range of surface finishes, from No.1, 2B, BA, HL, 8K, to Mirror, and guarantee a tolerance of ±0.02mm. All of our 316L stainless steel sheets have been tested with UT, ET, HT, RT, PT, and other tests, and they come with an ISO, SGS, and BV certificate.



Customization:

316L Stainless Steel Sheets Customization Service

We offer customized services for 316L Stainless Steel Sheets including: Stainless Steel 316L, 316L Stainless Steel Sheet, SS 316L Sheets, etc.

  • Minimum Order Quantity: 1 ton
  • Package: Standard Export Seaworthy Package
  • Length: 2000mm, 2438mm, 3000mm, 6000mm
  • Payment: T/T, L/C, Western Union
  • Material: 316L Stainless Steel
  • Certificate: ISO, SGS, BV, Etc.
Welding 316L Stainless Steel Plate Sheets 1500mm 2000mm 0Welding 316L Stainless Steel Plate Sheets 1500mm 2000mm 1

Support and Services:

Our technical support and services for 316L Stainless Steel Sheets include:

  • Assistance in selecting the right material and product for your needs.
  • Help in choosing the correct fabrication process.
  • Guidance on best practices for installation and maintenance.
  • Advice on design considerations and standards.
  • Assistance in answering questions related to material properties.
  • Support in troubleshooting production and product issues.
  • Assistance in developing custom solutions for your specific needs.


Packing and Shipping:

Packaging and Shipping
  • 316L Stainless Steel Sheets are packaged in waterproof paper and plastic film.
  • They are securely packed in wooden cases/pallets/crates.
  • The sheets are shipped via air, sea or land.


FAQ:

  • Q: What is the minimum order quantity for 316L Stainless Steel Sheets? A: The minimum order quantity is 1 ton.
  • Q: What material are the 316L Stainless Steel Sheets made of? A: The 316L Stainless Steel Sheets are made of 316L stainless steel.
  • Q: Are the 316L Stainless Steel Sheets durable? A: Yes, the 316L Stainless Steel Sheets are highly durable.
  • Q: Are the 316L Stainless Steel Sheets resistant to corrosion? A: Yes, the 316L Stainless Steel Sheets are resistant to corrosion.
  • Q: How are the 316L Stainless Steel Sheets packaged? A: The 316L Stainless Steel Sheets are packaged in wooden boxes or crates.
