DX51D+Z120  Coil Galvanized 0.5MM THK BS EN 10327 Big Spangle

DX51D+Z120 Coil Galvanized 0.5MM THK BS EN 10327 Big Spangle

  • High Light

    DX51D+Z120 galvanized steel coil

    ,

    0.5 MM galvanized steel coil

    ,

    DX51D+Z120 galvanized coil

  • Application
    Construction, Automobile, Household Appliances, Etc.
  • Coil Weight
    3-8 Tons
  • Grade
    SGCC, DX51D
  • Material
    Galvanized Steel
  • Package
    Standard Seaworthy Export Package
  • Spangle
    Big
  • Standard
    EN10327
  • Surface Finish
    Regular Spangle/Chromate/Non-skin Pass/Oiled
  • Surface Treatment
    Galvanized
  • Thickness
    0.12-4.0mm
  • Width
    600-1500mm
  • Zinc Coating
    30-275g/m2
  • Place of Origin
    China
  • Brand Name
    Baosteel
  • Certification
    BS EN10327
  • Model Number
    DX51D+Z120
  • Minimum Order Quantity
    5 Ton
  • Price
    USD400-590/Ton
  • Packaging Details
    Export packaging + binding tape
  • Delivery Time
    5-8 work days
  • Supply Ability
    1000Ton/Month

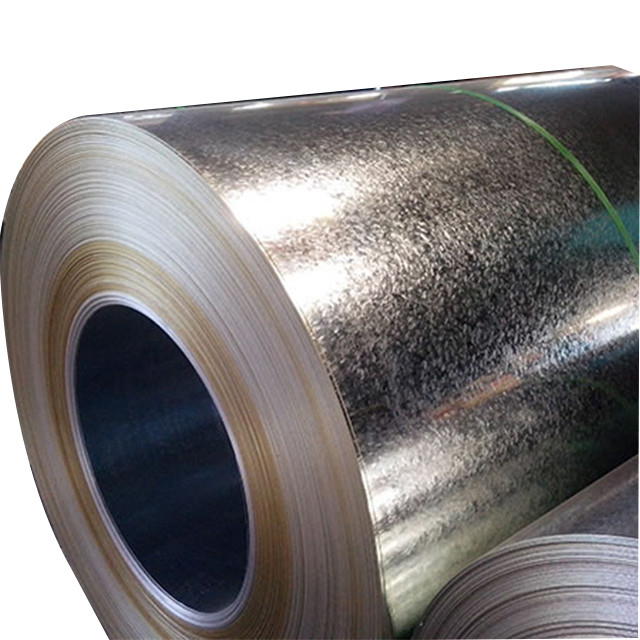

DX51D+Z120 Coil Galvanized 0.5MM THK BS EN 10327 Big Spangle

DX51D+Z120 0.5MM THK Galvanized Steel Coil BS EN 10327 Big Spangle



The main performance of DX51D+Z120 0.5mm thick galvanized steel coil with a big spangle includes:

1. Corrosion resistance: The zinc coating acts as a protective barrier against corrosion, extending the lifespan of the steel coil.

2. Strength and durability: The galvanized steel coil offers excellent strength and durability, making it suitable for various applications.

3. Formability: The steel coil can be easily formed and shaped without compromising its structural integrity.

4. Aesthetic appeal: The big spangle appearance adds a decorative and visually appealing element to the steel coil.



The galvanized steel coil is commonly used in various industries and applications, including:

1. Construction: It is widely used in the construction industry for roofing, cladding, gutters, and other structural components due to its corrosion resistance and strength.

2. Automotive industry: Galvanized steel coils are used in the manufacturing of automotive parts and components, including body panels, doors, chassis, and frames.

3. Appliances: It is used in the production of household appliances, such as refrigerators, washing machines, and air conditioning units, for its durability and corrosion resistance.

4. Manufacturing: Galvanized steel coils are utilized in various manufacturing processes, including fabrication, stamping, and forming, due to their formability and strength.

5. Agricultural applications: The galvanized steel coil is used in agricultural buildings, fences, and equipment due to its resistance to corrosion and harsh outdoor conditions.

Overall, DX51D+Z120 0.5mm thick galvanized steel coil with a big spangle offers excellent performance and versatility for a wide range of applications, providing corrosion resistance, strength, durability, and aesthetic appeal.



DX51D+Z120 Chemical composition analysis
Carbon ≤0.12%
Silicon ≤0.50%
Manganese ≤0.60%
Phosphorus ≤0.10%
sulfur ≤0.045%

Titanium

≤0.30%
Zinc layer ≥120g/㎡



Mechanical property

Tensile strength 270-500 MPa
Elongation ≥22%

DX51D+Z120  Coil Galvanized 0.5MM THK BS EN 10327 Big Spangle 0DX51D+Z120  Coil Galvanized 0.5MM THK BS EN 10327 Big Spangle 1DX51D+Z120  Coil Galvanized 0.5MM THK BS EN 10327 Big Spangle 2

FAQ

Q: What is the meaning of DX51D+Z120?
A: DX51D refers to the grade of the steel material, which is a hot-dip galvanized steel. The "+Z" indicates that it has a zinc coating, and "120" represents the thickness of the zinc coating, which is 120 grams per square meter.



Q: What is the thickness of the galvanized steel coil?
A: The thickness of the galvanized steel coil is 0.5mm, which refers to the thickness of the steel sheet before the galvanizing process.



Q: What is BS EN 10327?
A: BS EN 10327 is the British Standard for continuously hot-dip coated strip and sheet of low carbon steels for cold forming. This standard specifies the requirements for the mechanical properties, chemical composition, and dimensions of the galvanized steel material.



Q: What is a big spangle?
A: Big spangle refers to the appearance of the zinc coating on the galvanized steel surface. It indicates that the zinc crystals are larger and more visible, giving the steel a more textured and shiny appearance. Big spangle is often preferred for aesthetic purposes or decorative applications.



Q: What are the main performance characteristics of DX51D+Z120 0.5mm thick galvanized steel coil with a big spangle?
A: The main performance characteristics include corrosion resistance, strength, durability, formability, and aesthetic appeal.



Q: What are the common uses of DX51D+Z120 0.5mm thick galvanized steel coil with a big spangle?
A: The galvanized steel coil is commonly used in construction, automotive industry, appliances, manufacturing, and agricultural applications for roofing, cladding, automotive parts, household appliances, fabrication, stamping, forming, agricultural buildings, fences, and equipment.
