SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle

SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle

Products - Galvanized Steel Coil
  • Highlight

    SGCC Z18 galvanized sheet coil

    ,

    0.8MM galvanized sheet coil

    ,

    SGCC Z18 galvanized coil

  • Application
    Construction, Automobile, Household Appliances, Etc.
  • Coil Weight
    3-8 Tons
  • Grade
    SGCC, DX51D, SGHC
  • Material
    Galvanized Steel
  • Package
    Standard Seaworthy Export Package
  • Spangle
    Mini
  • Standard
    JISG3302
  • Surface Finish
    Regular Spangle/Chromate/Non-skin Pass/Oiled
  • Surface Treatment
    Galvanized
  • Thickness
    0.12-4.0mm
  • Width
    600-1500mm
  • Zinc Coating
    30-275g/m2
  • Place of Origin
    China
  • Brand Name
    Baosteel
  • Certification
    JISG3302
  • Model Number
    SGCC+Z08
  • Minimum Order Quantity
    5 Ton
  • Price
    USD400-590/Ton
  • Packaging Details
    Export packaging + binding tape
  • Delivery Time
    5-8 work days
  • Supply Ability
    1000Ton/Month

SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle

  • SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle
  • SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle
  • SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle
  • SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle
  • SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle
  • SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle
  • SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle
Get Price Contact Now

SGCC-Z18 0.8MM THK Galvanized Steel Coil JISG3302 Mini Spangle



The SGCC-Z18 galvanized steel coil with a thickness of 0.8mm, mini spangle, and compliance with JISG3302 has several main performance characteristics:

  1. Corrosion resistance: The zinc coating on the steel coil provides excellent protection against corrosion, extending the lifespan of the material.

  2. Strength and durability: The galvanized steel coil offers high strength and durability, making it suitable for various applications.

  3. Formability: The steel coil can be easily formed and shaped without compromising its structural integrity, allowing for flexibility in design and installation.

  4. Mini spangle appearance: The mini spangle appearance refers to smaller and more closely spaced zinc crystals on the surface, resulting in a smoother and more uniform surface finish.

The SGCC-Z18 galvanized steel coil with mini spangle is commonly used in various industries and applications, including:

  1. Construction: It is widely used in construction for roofing, cladding, gutters, and downspouts, providing protection against the elements. The mini spangle appearance can offer a clean and sleek aesthetic.

  2. Manufacturing: Galvanized steel coils with mini spangle are used in the manufacturing of various products, such as HVAC ductwork, electrical enclosures, and automotive parts.

  3. Appliances: It is used in the manufacturing of appliances such as refrigerators, washing machines, and ovens, offering both aesthetic appeal and corrosion resistance.

  4. General manufacturing: The galvanized steel coil finds applications in general manufacturing, including furniture, storage systems, and agricultural equipment.

  5. Automotive industry: It is used in the manufacturing of automotive components, such as body panels, chassis parts, and structural reinforcements, where both strength and corrosion resistance are required.

Overall, the SGCC-Z18 galvanized steel coil with mini spangle offers excellent corrosion resistance, strength, formability, and a smooth and uniform surface finish. It is suitable for various applications in construction, manufacturing, appliances, automotive, and general manufacturing industries, particularly where a clean and sleek appearance is desired.



SGCC-Z18 Chemical composition analysis
Carbon ≤0.15%
Manganese ≤0.80%
Phosphorus ≤0.05%
Sulfur ≤0.05%
Zinc layer ≥180g/㎡



Mechanical property
Tensile Strength ≥270 MPa
Yield Strength ≥205 MPa

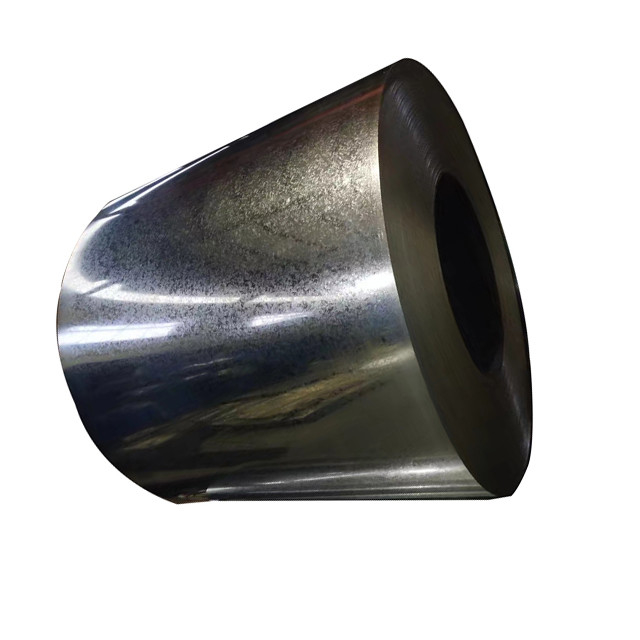

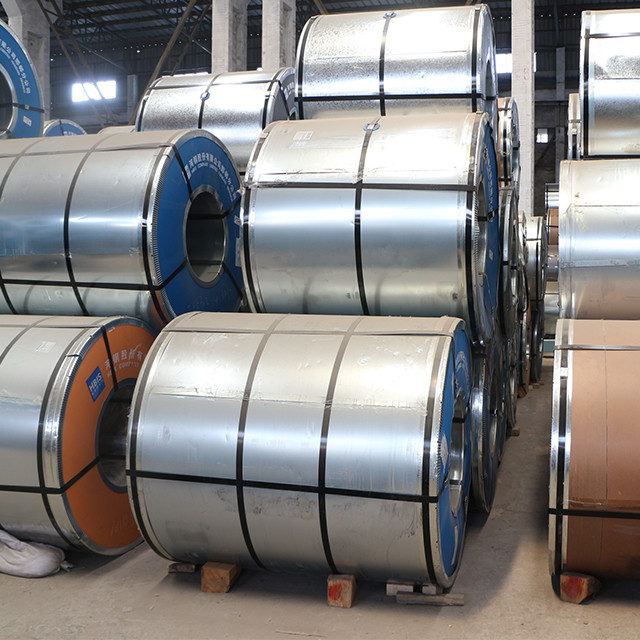

SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle 0SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle 1

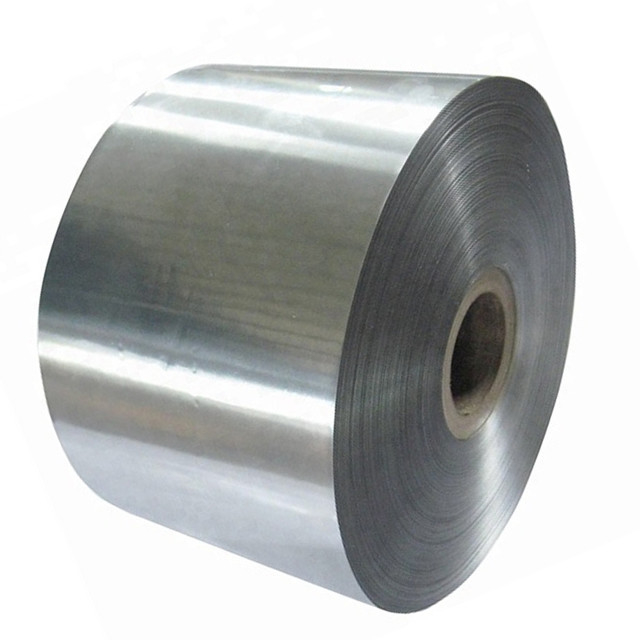

SGCC Z18 Galvanized Sheet Coil 0.8MM THK JISG3302 Mini Spangle 2



FAQ

Q: What does SGCC-Z18 mean?
A: SGCC-Z18 refers to a galvanized steel coil with a zinc coating weight of 180 grams per square meter. SGCC is the designation for hot-dip galvanized steel in Japan, and the "-Z18" indicates the zinc coating weight.



Q: What is the thickness of the galvanized steel coil?
A: The thickness of the galvanized steel coil is 0.8mm, which refers to the thickness of the steel sheet before the galvanizing process.



Q: What is JISG3302?
A: JISG3302 is the Japanese Industrial Standard for hot-dip galvanized steel sheets and coils. It specifies the requirements for the mechanical properties, chemical composition, dimensions, and coating weight of galvanized steel products.



Q: What is mini spangle?
A: Mini spangle refers to the appearance of the zinc coating on the galvanized steel surface. It indicates that there are smaller and more closely spaced zinc crystals, resulting in a smoother and more uniform surface finish.



Q: What are the main properties of SGCC-Z18 0.8mm thick galvanized steel coil with mini spangle?
A: The main properties include corrosion resistance, strength, formability, and a smooth and uniform surface finish.



Q: What are the common uses of SGCC-Z18 0.8mm thick galvanized steel coil with mini spangle?
A: The galvanized steel coil with mini spangle is commonly used in various applications, including roofing, cladding, gutters, downspouts, HVAC ductwork, appliances, automotive components, and general manufacturing.



Q: Can a galvanized steel coil with mini spangle be painted or coated?
A: Yes, a galvanized steel coil with mini spangle can be painted or coated with various finishes for additional protection or aesthetic purposes. The smooth and uniform surface facilitates good adhesion of the paint or coating.



Q: Is the galvanized steel coil with mini spangle suitable for outdoor applications?
A: Yes, the galvanized steel coil with mini spangle offers excellent corrosion resistance and is suitable for outdoor applications where exposure to harsh weather conditions is expected. The zinc coating acts as a protective barrier against rust and corrosion.



Q: Can the galvanized steel coil with mini spangle be welded?
A: Yes, the galvanized steel coil with mini spangle can be welded using appropriate welding techniques and procedures. However, it is important to take precautions to prevent damage to the zinc coating during the welding process.
